Haunted Motion Sensor Products

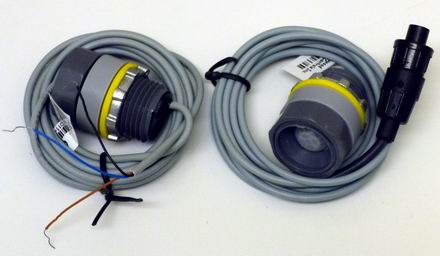

HC1011-X
Barrel Style PIR Motion Sensor
HC1011 This PIR (Passive Infra-red) wired sensor detects warm bodies only and is insensitive to fog and moving curtains. It comes in a 7/8" threaded barrel shape that fits a standard 1/2" electrical knock-out or similar opening in a wood or metal panel. It uses a 3-wire industry-standard interface. Power is 5-15VDC with an NPN output. (Our modular power supplies are 5VDC). The sensor can be purchased with or without a terminating connector. The sensor has a integral front visual trigger indicator. Sensitivity is fixed, with a range of ~8' and 30 degrees.
  • PIR Type (Passive Infra-red)
  • 7/8" wired barrel mounting
  • Flexible 5' cable

  • HC1011-X manual
Barrel PIR Motion Sensor
PayPal Logo
HC1011-1K
Barrel Style PIR Motion Sensor with Power Supply Kit
HC1011-1K This is our HC1011-1 PIR Sensor combined with a HC205-1 5VDC Power Supply as a kit. The Supply has a mating connector for the HC1011-1 Sensor and a 36" male RCA trigger output cable.
Barrel PIR Motion Sensor Kit
PayPal Logo

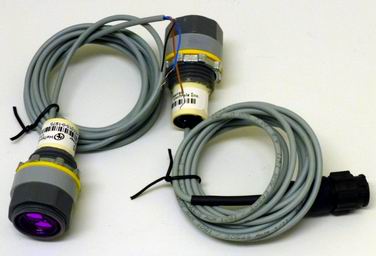

HC1015-X
Barrel Style DIR Motion Sensor
HC1015 The HC1015-X sensor uses an active IR beam to detect a reflection from any object in range. It comes in a 7/8" threaded barrel shape that fits a standard 1/2" electrical knock-out or similar opening in a wood or metal panel. It uses a 3-wire industry-standard interface. Power is 5VDC with an NPN output. The sensor can be purchased with or without a terminating connector. The sensor has a integral rear visual trigger indicator. Sensitivity is fixed, with a range of ~8' and 15 degrees.
  • DIR Type (Diffuse-reflective Infra-red)
  • 7/8" wired barrel mounting
  • Flexible 5' cable

  • HC1015-X manual
Barrel DIR Motion Sensor
PayPal Logo

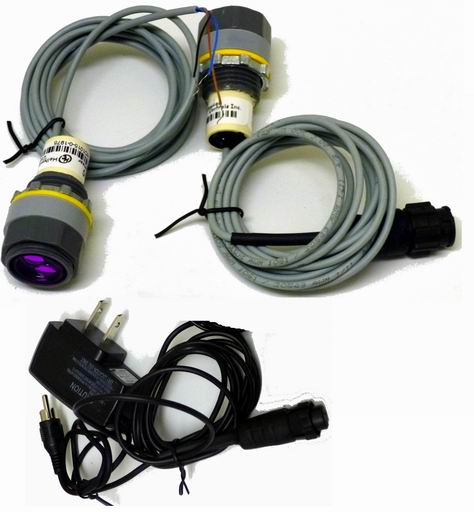

HC1015-4K
Barrel Style DIR Motion Sensor Kit
HC1015-4K This is our HC1015-1 PIR Sensor combined with a HC205-4 5VDC Power Supply as a kit. The Supply has a mating connector for the HC1015-4 Sensor and a 36" male RCA trigger output cable.
  • DIR Type (Diffuse-reflective Infra-red)
  • 7/8" wired barrel mounting

  • HC1015-X manual
Barrel DIR Motion Sensor Kit
PayPal Logo
HC1016-X
Barrel Style RIR Motion Sensor
HC1015 The HC1016-X sensor uses an active IR beam sent outward to a reflector and back to the sensor. If the beam is broken, the sensor triggers. It comes in a 7/8" threaded barrel shape that fits a standard 1/2" electrical knock-out or similar opening in a wood or metal panel. It uses a 3-wire industry-standard interface and is powered from 5VDC with an NPN output. The sensor can be purchased with or without a terminating connector. The sensor has a integral rear visual trigger indicator. Sensitivity is fixed, with a range of ~18" to 8' and 15 degrees.
  • RIR Type (Retro-reflective Infra-red)
  • 7/8" wired barrel mounting
  • Flexible 5' cable
  • Red 3" reflector included

  • HC1016-X manual
Barrel RIR Motion Sensor
PayPal Logo

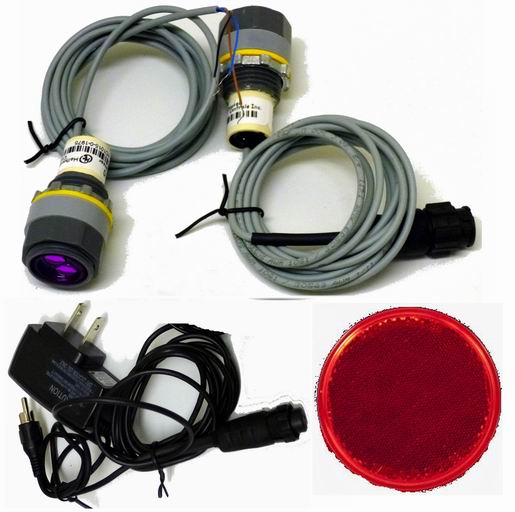

HC1016-4K
Barrel Style RIR Motion Sensor Kit
HC1016-4K This is our HC1016-1 PIR Sensor combined with a HC205-4 5VDC Power Supply as a kit. The Supply has a mating connector for the HC1016-4 Sensor and a 36" male RCA trigger output cable.
  • RIR Type (Retro-reflective Infra-red)
  • 7/8" wired barrel mounting
  • Red 3" reflector included

  • HC1016-X manual
Barrel RIR Motion Sensor Kit
PayPal Logo
HC1010
Battery Powered PIR Motion Sensor
HC1010 Our battery powered PIR Senser is compact, durable and ideal for setting up path, hall or walkway triggering of devices, and is powered for months from an internal replaceable 9V battery. Uses an RCA jack output for low voltage triggering through the included 15' cable. Sensitivity adjustment is provided by attaching included extension tubes.
  • PIR Type (Passive Infra-red)
  • 9V battery powered
  • 15' trigger cable

  • HC1010 manual
9V PIR Motion Sensor Kit
PayPal Logo
