SuperProbe Case with 800mAh Li-Ion Battery & 4ohm Speakers Kit
We have finally put together a complete miniture SuperProbe Case Kit as shown on Instructables.com.
This kit complements our MK1, MK2 & MK3 kits.
This Kit uses a 3.7V Li-Ion
battery (typical 3.7-4.2VDC) to power the probe & amp and includes a TP4056 charger module, battery connector
cable, micro-USB charger cable, wire #1-80 screws/nuts/lock washers and spacers. The included speaker comprises a pair of 8ohm 1W speakers
in parallel pre-mounted to the front panel.

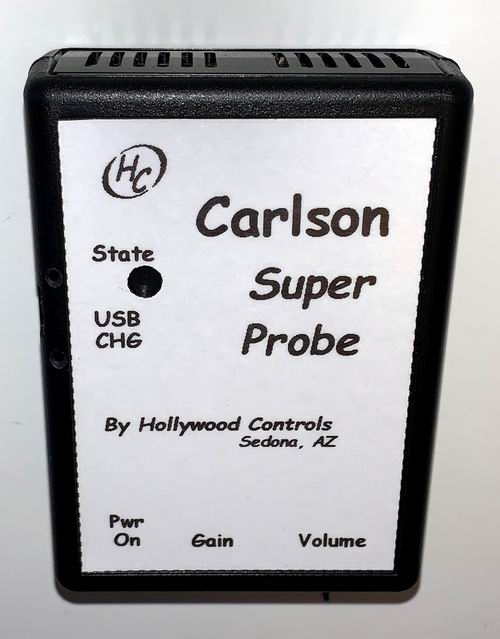

The black ABS case shown in the pictures is made by Hammond, part #1593LBK 3.6" x 2.6" x1.1".
SHIPPING NOTE:
We can only ship this kit to USA destinations and only by ground due to the USPS restrictions for Li-Ion batteries.
Anyone interested in building the probe should first review:
Mr Carlson's YouTube video @ https://www.youtube.com/watch?v=uVkJqqZroN0
Yannick99 @ https://www.instructables.com/Carlsons-Super-Probe/
The Assembly:
Basic instructions, schematic and a photo of a typical amp housing are included.
|
|
